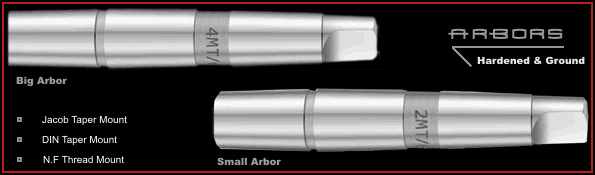

Arbors with Jacob Taper

Morse Taper Shank 0J 1J 2J 2(1) J 6J 3J 1 1MT / 0 1MT / 1 1MT / 2 1MT / 2(1) 1MT / 6 1MT / 3 2 2MT / 0 2MT / 1 2MT / 2 2MT / 2(1) 2MT / 6 2MT / 3 3 - 3MT / 1 3MT / 2 3MT / 2(1) 3MT / 6 3MT / 3 4 - 4MT / 1 4MT / 2 4MT / 2(1) 4MT / 6 4MT / 3

Arbor with Din Taper

Morse Taper Shank B10 B12 B16 B18 B22 1 1MT / B10 1MT / B12 1MT / B16 - - 2 2MT / B10 2MT / B12 2MT / B16 2MT / B18 2MT / B22 3 3MT / B10 3MT / B12 3MT / B16 3MT / B18 2MT / B22 4 4MT / B10 4MT / B12 4MT / B16 4MT / B18 4MT / B22

Arbors with N.F Thread

Morse Taper Shank 3 / 8" X 24 1 / 2" X 20 5 / 8" X 16 1 1MT / 3/8" x 24 1MT / 1/2" x 20 - 2 2MT / 3/8" x 24 2MT / 1/2" x 20 2MT / 5/8" x 16 3 3MT / 3/8" x 24 3MT / 1/2" x 20 3MT / 5/8" x 16 4 4MT / 3/8" x 24 4MT / 1/2" x 20 4MT / 5/8" x 16

Morse Taper Shank M 10 X 1.0 M 12 X 1.25 M 14 X 1.50 M 18 X 1.50 1 1 MT / M10 x 1.0 1 MT / M12 x 1.25 1 MT / M14 x 1.50 - 2 2 MT / M10 x 1.0 2 MT / M12 x 1.25 2 MT / M14 x 1.50 2 MT / M18 x 1.50 3 3 MT / M10 x 1.0 3 MT / M12 x 1.25 3 MT / M14 x 1.50 3 MT / M18 x 1.50 4 4 MT / M10 x 1.0 4 MT / M12 x 1.25 4 MT / M14 x 1.50 4 MT / M18 x 1.50

	For example, 1MT/1J means MORSE TAPER SHANK 1 which can be fitted to any chuck model having 1J TAPER MOUNT.
	For example, 2MT/3/8" means MORSE TAPER SHANK 2 which can be fitted to any chuck model having 3/8" N.F. TAPER MOUNT.

	For Chucks : Select the chuck's mount, capacity and corresponding chuck model code. e.g Chuck model code 130B16................ 200 Nos.
	For Arbors : Select morse taper shank number to suit your machine and the mount of chuck model i.e. Jacob / Din or thread specification to suit GRIPP Arbor model code.

1- Chucks having nominal capacity of zero will hold minimum 0.7 mm (0.0275") drill.

2- Thread mounted and light duty chucks will have eccentricity value of 0.21 mm (0.0087") T.I.R and industrial duty taper mounted chucks will eccentricity value of 0.18 mm (0.007") T.I.R measured on test mandrel at 75 mm away from the shoulder of jaws.
